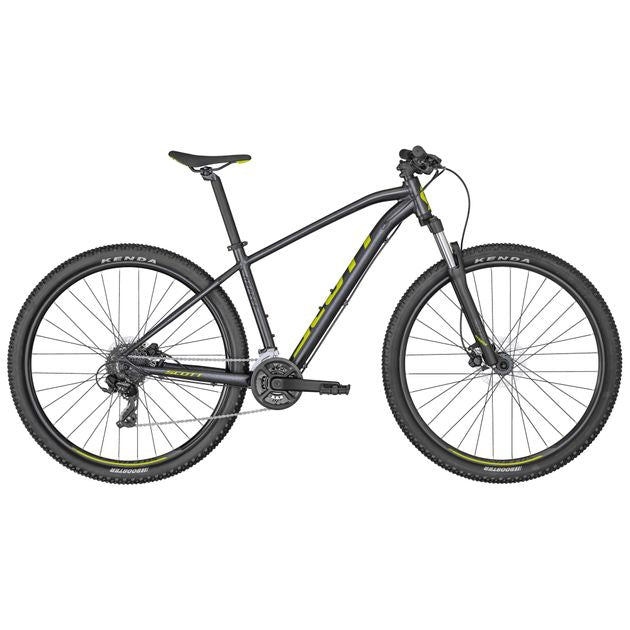

Scott Aspect 760

La SCOTT Aspect 760 è una bici hardtail leggera, efficiente e con un ottimo rapporto qualità/prezzo. È la bici perfetta per chi ha da poco scoperto la mountain bike perché equipaggiata con freni a disco e componenti Syncros.

Notare che le specifiche delle bici sono soggette a cambiamenti senza alcun preavviso

Specifiche

Telaio: Aspect 900-700 series / Alloy 6061 Custom TubingBSA73 / Internal Cable Routing / replaceable hanger

---

Forcella: Suntour XCE28100mm travel

---

Deragliatore posteriore: Shimano Tourney RD-TX80016 Speed

---

Deragliatore anteriore: Shimano FD-M315-TS / 31.8mm

---

Leve del cambio: Shimano SL-M315R-fire plus / 2 way releasew/gear indicator

---

Guarnitura: Prowheel TM-CY0136X22 w/CG

---

Movimento Centrale: Feimin FP.B908NBB73 / square taper

---

Catena: KMC Z-8.3

---

Cassetta: Sunrace CSM55 8AV / 11-34T

---

Freni: Clarks Clout Hydr. Disc Brakes

---

Disco del freno: Clarks / 6 bolt / F&R 160mm

---

Manubrio: HL MTB-AL-312BT / 720mm / black / 12mm riseSyncros Pro Grip

---

Attacco manubrio: TDS-C301-8FOV / 10° / 31.8 / Black

---

Reggisella: HL SP C20731.6mm / 350mm / Black

---

Sella: Syncros 3.0

---

Serie sterzo: Syncros OE Press Fit / 1 1/8"OD 50mm / ID 44mm

---

Mozzo anteriore: Formula DC-19 FQR Disc

---

Mozzo posteriore: Formula DC-25 8s RQR Disc

---

Raggi: 14 G / stainless / black

---

Cerchio: Syncros X-20 Disc32H / black

---

Gomma anteriore: Kenda Booster2.4" / 30TPI

---

Gomma posteriore: Kenda Booster2.4" / 30TPI

---

PEDALI: Feimin FP-873-ZU

---

Peso in kg (approx.): 14.5 (with tubes / wo Pedals)

---

Peso in lbs (approx.): 31.97 (with tubes / wo Pedals)

---

Peso totale: 128kg

(Il peso totale include la bici, il ciclista, l'equipaggiamento, e potenzialmente bagagli aggiuntivi)

MMINCHES

						XS		S		M		L
A	head tube angle					68.0 °		68.0 °		68.0 °		68.0 °
B	head tube length					95.0 mm		100.0 mm		110.0 mm		120.0 mm
C	top tube horizontal					560.0 mm		585.0 mm		600.0 mm		615.0 mm
D	standover height					720.0 mm		745.0 mm		776.0 mm		799.0 mm
E	BB offset					-44.0 mm		-44.0 mm		-44.0 mm		-44.0 mm
F	BB height					308.5 mm		308.5 mm		308.5 mm		308.5 mm
G	wheel base					1,087.0 mm		1,115.0 mm		1,131.0 mm		1,147.0 mm
H	BB center to toptube center					314.0 mm		344.0 mm		389.0 mm		429.0 mm
I	BB center to top of seattube					355.0 mm		395.0 mm		440.0 mm		480.0 mm
J	seat angle					74.0 °		74.0 °		74.0 °		74.0 °
K	chainstay					435.0 mm		435.0 mm		435.0 mm		435.0 mm
L	reach					402.0 mm		420.0 mm		432.0 mm		445.0 mm
M	stack					552.0 mm		575.0 mm		584.0 mm		594.0 mm
N	stem length					50.0 mm		60.0 mm		70.0 mm		80.0 mm
