Merida

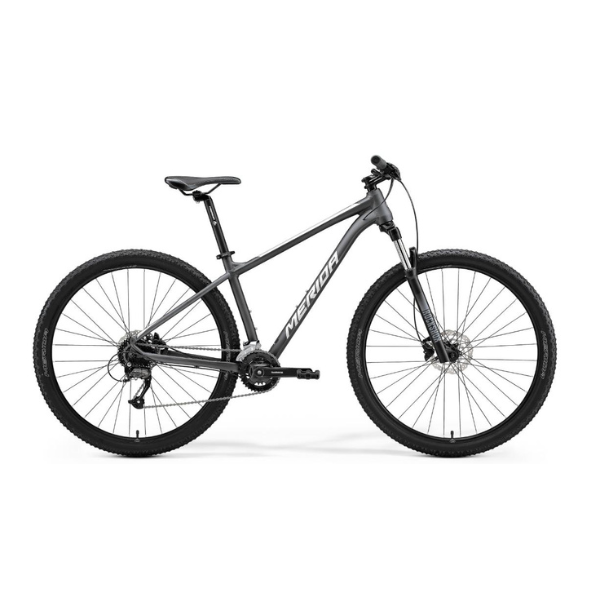

Merida Big.Nine 60 - 2X

Merida Big.Nine 60 - 2X

€499,00
€960,00 €499,00
Sale Ausverkauft
inkl. MwSt. Versand wird beim Checkout berechnet
Colore
Taglia

Merida Big.Nine 60 - 2X



SPECIFICHE



Misure L(18.5), M(17), S(14.5), XL(20), XXL(22)
Colore MATT BRONZE(BLACK), MATT DARK SILVER(SILVER), RACE RED(ORANGE), SILK PURPLE(CHAMPAGNE)
Telaio BIG.NINE TFS III; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR
Forcella Rock Shox Judy TK; Coil; 100mm suspension travel Lockout; 46mm fork offset
Freno anteriore Shimano ST-EF505; BR-MT200 brake caliper
Freno posteriore Shimano ST-EF505; BR-MT200 brake caliper
Catena KMC M99
Guarnitura Shimano MT101-2; 36-22 teeth
Cambio Shimano RD-M370
Pacco pignoni Shimano CS-HG200; 11-32 teeth; 9 speed
Piega manubrio MERIDA CC; MAT aluminium; 690mm width; 15mm rise
Attacco manubrio MERIDA CC; MAT aluminium; 31.8mm diameter; 6?stem angle
Serie sterzo Merida M2345
Mozzo anteriore Shimano TX505; 100x9mm width front hub; 32 spoke holes; Centerlock
Mozzo Posteriore Shimano TX505; 135x9mm width rear hub; 32 spoke holes; Centerlock
Cerchi MERIDA CC; 17mm inner width; MAT aluminium
Sella Merida Sport comfort
Cannotto reggisella MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB
Comando destro Shimano ST-EF505
Comando sinistro Shimano ST-EF505-2L
Raggi Black steel
Copertoni MERIDA K1080; 29x2.2"; wire
Pedali VP VPE-891
Pedivella 170 mm-S, 175 mm-M/XXL
Serie movimento Shimano BB-UN100
Campanello YWS-Alloy
Morsetto Sella MERIDA comp QR
Manopole MERIDA EC
Deragliatore Shimano FD-M2020-TS


GEOMETRIE


FS - Frame size (mm) S M L XL XXL
ST - Seat tube (mm) 370 430 470 510 560
TT - Top tube (mm) 570 590 610 630 650
HT - Head tube (mm) 100 115 130 145 160
HTA - Head tube angle (°) 70 70 70 70 70
STA - Seat tube angle (°) 73 73 73 73 73
CS - Chain stay lenght (mm) 440 440 440 440 440
BD - Bottom bracked drop (mm) 60 60 60 60 60
FO - Fork lenght (mm) 506 506 506 506 506
SH - Stand over height (mm) 679 727 763 800 843
S - Stack (mm) 614 628 642 656 670
R - Reach (mm) 382 398 414 429 445
WB - Wheel base (mm) 1069 1090 1110 1131 1152
